Camera
Type |
Medium 6x6 Format
Reflex Camera |
Manufacturer |
Leningradskoje
Optiko-Mechanitschskoje Objedinjenije (LOMO), USSR |
Year Introduced |
about 1960 |
Film |
120 Roll Film |
Size |
154.1 mm x 101.2 mm x
93.4 mm (W x H x D) |
Weight |
809 grams (1128 grams
with everready-case) |
Lens Separation |
63.58 mm |
Image Format |
55.3 x 55.4 mm (W x H) |
Image Window Separation |
64.22 mm |
Lenses |
Lomo T-22 matched
anastigmats (3 elements, glass), 1:4.5/75 mm, no filter thread (outside lens
diameter: 26.9 mm) |
Diaphragms |
Iris diaphragms between
the lenses, continuously adjustable f/4.5 to f/22 |
Focusing |
manual, 1.3 m - infinity |
Shutter |
mechanical central type
shutter with 3 blades, between the lenses. Cocked with separate lever. |
Shutter Speeds |
1/125, 1/60, 1/30,
1/15 sec. and "B" (New Model)
1/100, 1/50, 1/25, 1/10 sec. and "B" (Old Model) |
Viewfinder |
Reflex viewfinder with
viewfinder lens 1:2.8, viewfinder hood and lens; frame finder. |
Rangefinder |
n/a |
Film Loading |
Manual |
Film Transport |
manual, with knob |
Film Rewinding |
not possible (roll film) |
Frame Counter |
printed number on
protective film backing (advance by 2 numbers) |
Flash Contact |
PC-Contact |
Tripod Socket |
3/8“ / 16 TPI or ¼“ / 20
TPI, depending on model |
Selftimer |
approx. 7 to 12 sec.
delay |
Special Features |
Double exposures and 2D
photos possible |
Accessories |
Operating instructions,
everready case, viewer (slides & prints), copy frame |
Notes |

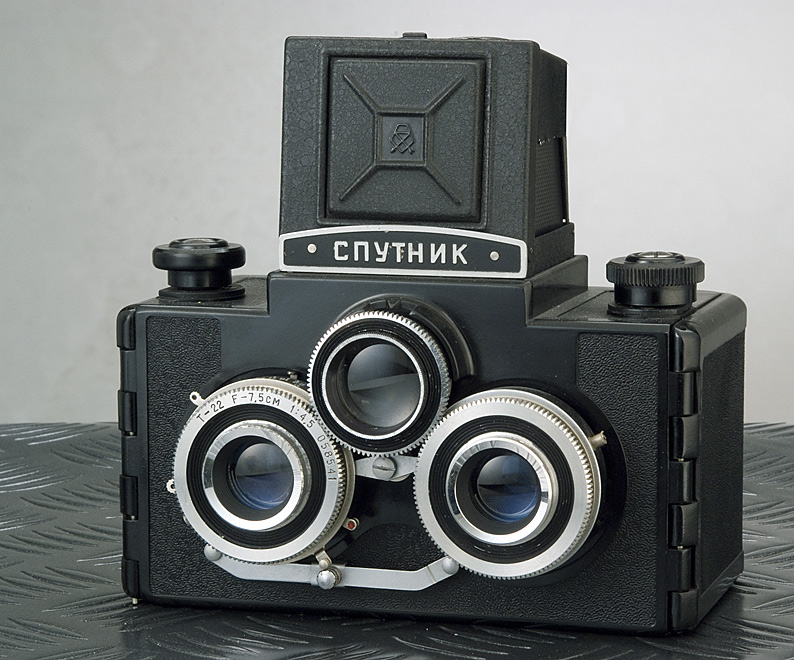

Lettering on camera
either in latin characters (SPUTNIK) or cyrillic (resembling CPYTNK) |
