Camera Type |

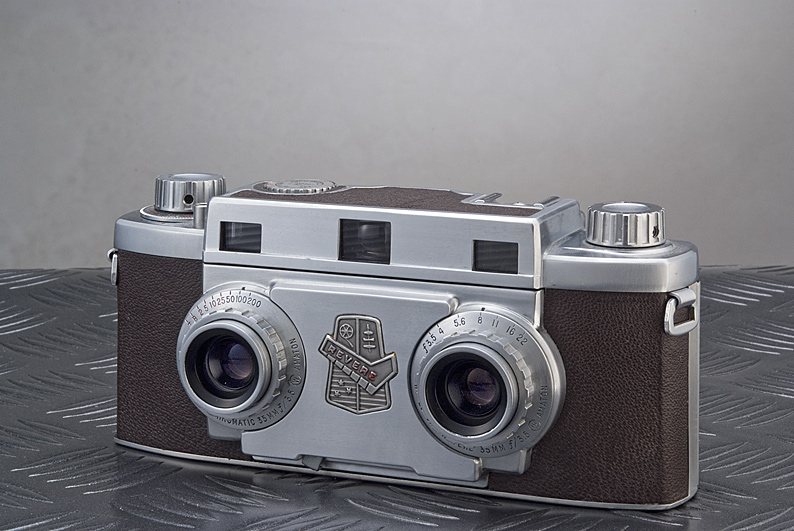

35 mm viewfinder stereo camera |
|
Manufacturer |
Revere Camera Company, Inc., 320 E. 21st Street, Chicago 16, Illinois, USA |
|
Year Introduced |
About 1953 |
|
Film |
135 cartridge |
|
Size |
170 x 79 x 59 mm (W x H x D) |
|
Weight |
776 grams (1,067 grams with Everready Case) |
|
Lens Separation |
69.78 mm |
|
Image Format |
23.42 x 25.20 mm (W x H) |
|
Image Window Separation |
70.64 mm |
|
Lenses |
Matched glass lenses, Wollensak Revere Amaton Anastigmat 1:3.5/35 mm. Threaded filter retaining rings for Series IV filters. |
|
Diaphragms |
Iris diaphragms between the lenses, continuously adjustable f/3.5 to f/22 |
|
Focusing |
Manual, 3 ft. - infinity (0.91 m - infinity) |
|
Shutter |
Mechanical Revere Wollensak Rapax Stereo Synchromatic central type shutter, behind the lenses, cocking with film transport (separate cocking-lever for double-exposures) |
|
Shutter Speeds |
1/200, 1/100, 1/50, 1/25, 1/10, 1/5, ½ sec. and "B", "T" |
|
Viewfinder |
Newton viewfinder (approx. 0,5x), with parallax-compensation with lever on back side (3 - 10 ft. and 10 ft. - infinity), bubble level |
|
Rangefinder |
separate rangefinder, base 74 mm, enlargement approx. 1.2x |
|
Film Loading |
Manual |
|
Film Transport |
Manual, with knob by 10 sprocket holes (= 47.5 mm), sprocket wheels on top and bottom |
|
Film Rewinding |
Manual, with rewind-button |
|
Frame Counter |
Mechanical, Additive, 1 to 32. Manual reset. |
|
Flash Contact |
Hot shoe (not standard) |
|
Tripod Socket |
¼“ / 20 TPI (not in the center) |
|
Selftimer |
n/a |
|
Special Features |
Double exposures possible, eyelets for carrying-strap, depth-of-field scale, cable-release socket |
|
Accessories |
Everready case, stereo viewer Revere Stereo 22, Flash unit (bulbs) |
|
Notes |
Similar to Wollensak Stereo |
|
|
|
|
|
|
|
|
|
