Camera Type |

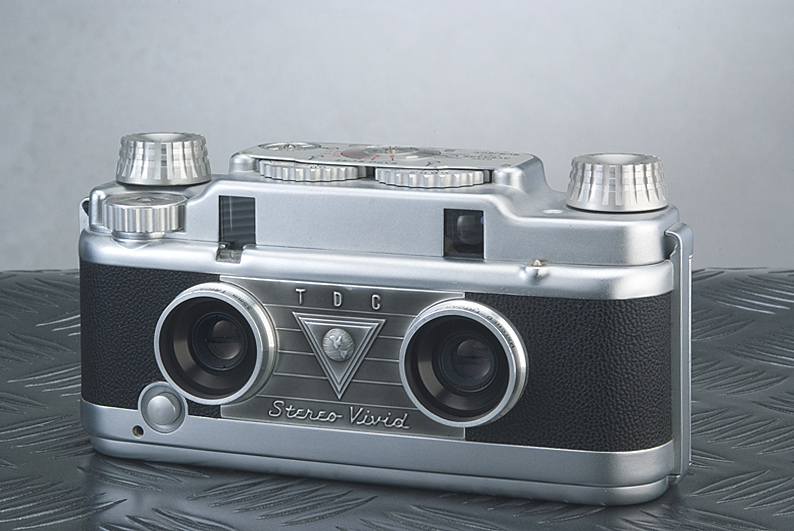

35 mm viewfinder stereo camera |
|
Manufacturer |
Three Dimension Co., Chicago, IL, USA (A Division of Bell & Howell) |
|
Year Introduced |
about 1954 |
|
Film |
135 cartridge |
|
Size |
163 x 83 x 59 mm (W x H x D) |
|
Weight |
747 grams |
|
Lens Separation |
65.15 mm |
|
Image Format |
23.82 x 25.00 mm (W x H), notch on the right |
|
Image Window Separation |
66.42 mm |
|
Lenses |
Tridar Anastigmat (glass, matched), 1:3.5/35 mm, filter thread 26 mm |
|
Diaphragms |
Iris diaphragms between the lenses, continuously adjustable f/3.5 to f/16 |
|
Focusing |
manual, 4 ft. - infinity. Movement of the film level. (focusing wheel marked from 2 ¾ ft. - infinity) |
|
Shutter |
mechanical guillotine type shutter behind the lenses. Cocked with film transport. |
|
Shutter Speeds |
continuously adjustable from 1/100 to 1/10 sec. and "B" |
|
Viewfinder |
Newton viewfinder (approx. 0,5x). Spirit level reflected into viewfinder |
|
Rangefinder |
Split-image rangefinder (linked with focus), base length 60.5 mm |
|
Film Loading |
Manual |
|
Film Transport |
manual, with wind knob by 10 sprocket holes (= 47.5 mm), sprocket wheel on top and bottom |
|
Film Rewinding |
manual. Unlocking by lifting wind button |
|
Frame Counter |
subtractive, 29 to 1. Manual reset. |
|
Flash Contact |
special flash contact |
|
Tripod Socket |
¼“ / 20 TPI (not in the center) |
|
Selftimer |
n/a |
|
Special Features |
Double exposure prevention. Lugs for carrying-strap |
|
Accessories |
Operating instructions, everready case |
|
Notes |
The film
travels in a loop in order to achieve a smaller inter-ocular distance.
|
|
|
|
|
|
|
|
|
|
